G18
G18

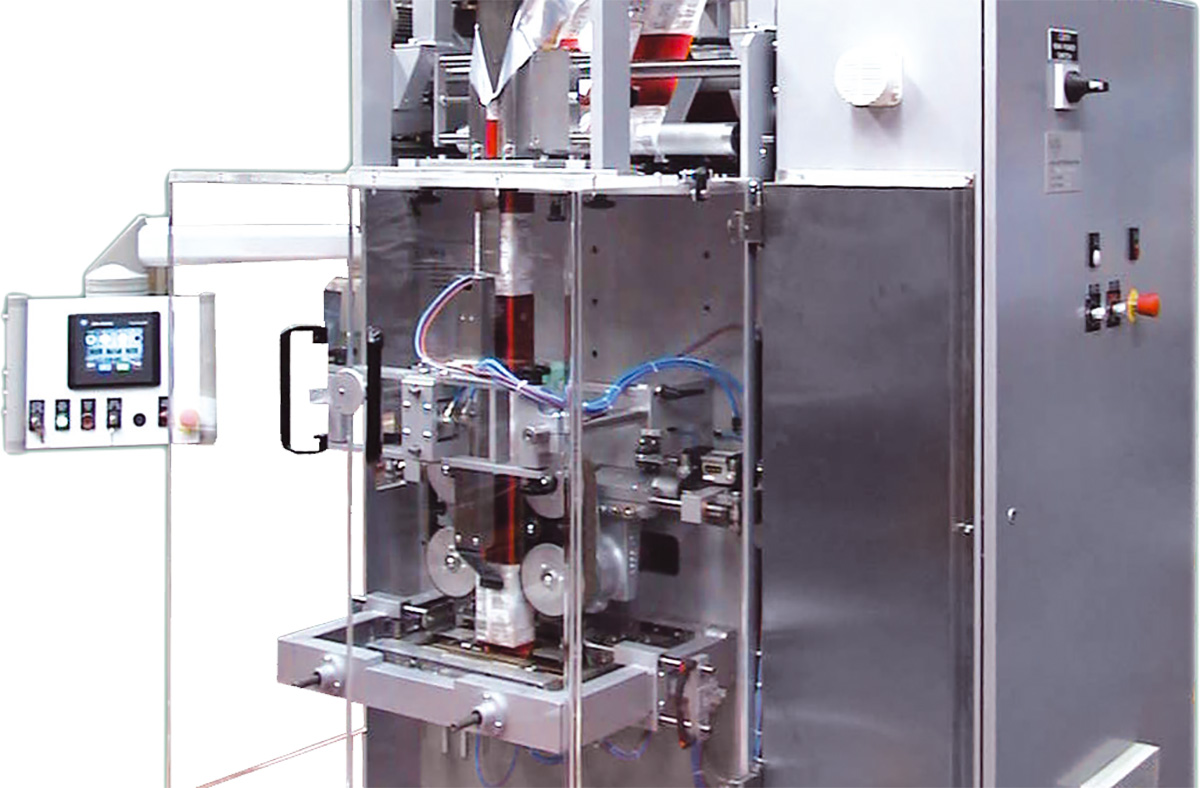

Automatic packaging line for granules, powders and chunks
- The air in the upper part of the bag can be removed for better stacking
- Bag sealing with four vertical ribs to provide the standing packages with additional rigidity
- Wide range of heatsealable laminates: transparent, paper coated, double-wall, metallized and easy-open
- Carrying handle punching at the top of the bag
Wide range of finished packages: transparent, paper coated, double wall, metallized and easy-open
- Complete integration between the forming machine and the valve application system. Different valves can be applied, both in the inner and visible versions
-
Workflow
and technical layout
-
-
-
Linea automatica di confezionamento per prodotti granulari, in polvere, in pezzi e capsule.
-
Photogallery
see the photogallery
-
Technical Specifications
view technical information
|
G18 |
G18 G |
G18 L |
G18 C |
Bag size (mm) |
min 50x32x180
max 170x130x580 |
min 60x40x180
max 216x134x580 |
min 60x40x180
max 230x160x730 |
min 50x32x180
max 130x85x420 |
Cut-off (mm) |
60-240 |
60-380 |
60-380 |
60-240 |
Bag capacity (c.c.) |
100-3.300 |
100-11.000 |
150-14.000 |
100-3.300 |
Productiion speed(pz/min) |
10-55 |
10-50 |
10-40 |
20-110 |
Machine weight (kg) |
800 |
1.500 |
1.700 |
1.500 |
Time for size change (min) |
30 |
30 |
30 |
30 |
Voltage from 208 to 550V, three phase, 50-60Hz |
√ |
√ |
√ |
√ |
IEC, NEC, CSA, UL, VDE electrical standards |
√ |
√ |
√ |
√ |
Installed power (kW) |
6,2 |
4 |
5 |
8 |
Air pressure (bar) |
6 |
6 |
6 |
6 |
Air consuption (Nl/min) |
250 |
200 |
200 |
200 |
Number and type of dosing systems |
1-2 xGL111
2 xGL110 |
1-2-4 x
GL110/GL111 |
1-2-4x
GL111 |
2-4 xGL111
2 xGL110 |
quantity dosing system of diff erent products |
1 |
1 |
1 |
1 |
Products packed with this machine
Packaging Types
Multiple pack for capsules
Multiple pack for capsules allows a greater product protection, a greater hygienical condition and an extension of the shelf life. & ...
Single-double pack
Single-double pack for one or two capsules. Each pack is hygienical and ensures a great preservation till the use of ...
Soft Pack
Packaging in atmosphere allows to preserve all coffee aromas and creates the ideal condition to make them continuous developing in ...
Le opzioni abbinabili a "G18"
Optional
Valve
One-way degassing valve
